Quality Management

Our professional strength and service quality shown by 8 International certification testing laboratories and over

1000

Quality Inspection Teams

7000

Professional Testing Equipments

1100

Product Certification

Comprehensive Testing for Uncompromising Quality

Defining safety and reliability through data-driven validation.

For Reliability

Dust Resistance

Evaluates sealing performance using controlled dust concentrations (2–20 kg/m³) and airflow (1–10 m/s). Complies with IP5X (limited dust ingress) and IP6X (total dustproof) standards.
Package Drop Test

Simulates transportation hazards. Filled product boxes are dropped from heights (0.5m–1.5m) onto edges, corners, and surfaces. Post-test inspections check for structural damage and functional integrity.
Rollover Test

Products placed on concrete are run over by a standard tire (P225/75R15) at 5000N ± 250N pressure and 8 km/h ± 2 km/h speed. Products must remain safe and functional.
Rain Test

Spray and immersion tests per GB/T 4208, validating water resistance levels such as IPX3 (spray at 60°), IPX4 (splash-proof), and IPX5/6 (water jet).

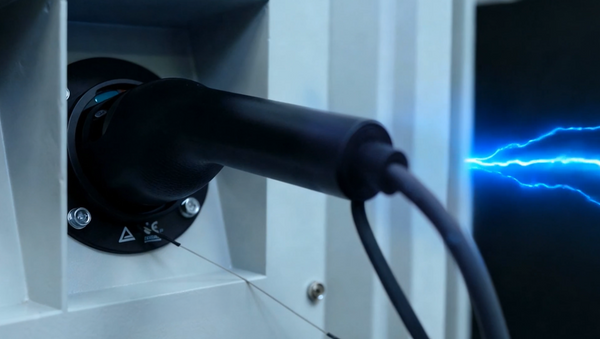

Connector Durability

Charging ports subjected to water immersion, gun heads run over by vehicle wheels, and individual plug drop tests from about 3m height.
Climatic Testing

Covers temperature extremes (-40°C to 200°C), damp heat (e.g., 85°C/85% RH), and salt spray corrosion (5% NaCl solution).

For Performance

Our lab conducts comprehensive lifespan and photometric testing to validate product longevity and optical performance.

Lifetime Bulb Lifespan Test

Lighting products is conducted under controlled laboratory conditions at rated voltage and ambient temperature to monitor its lifespan.

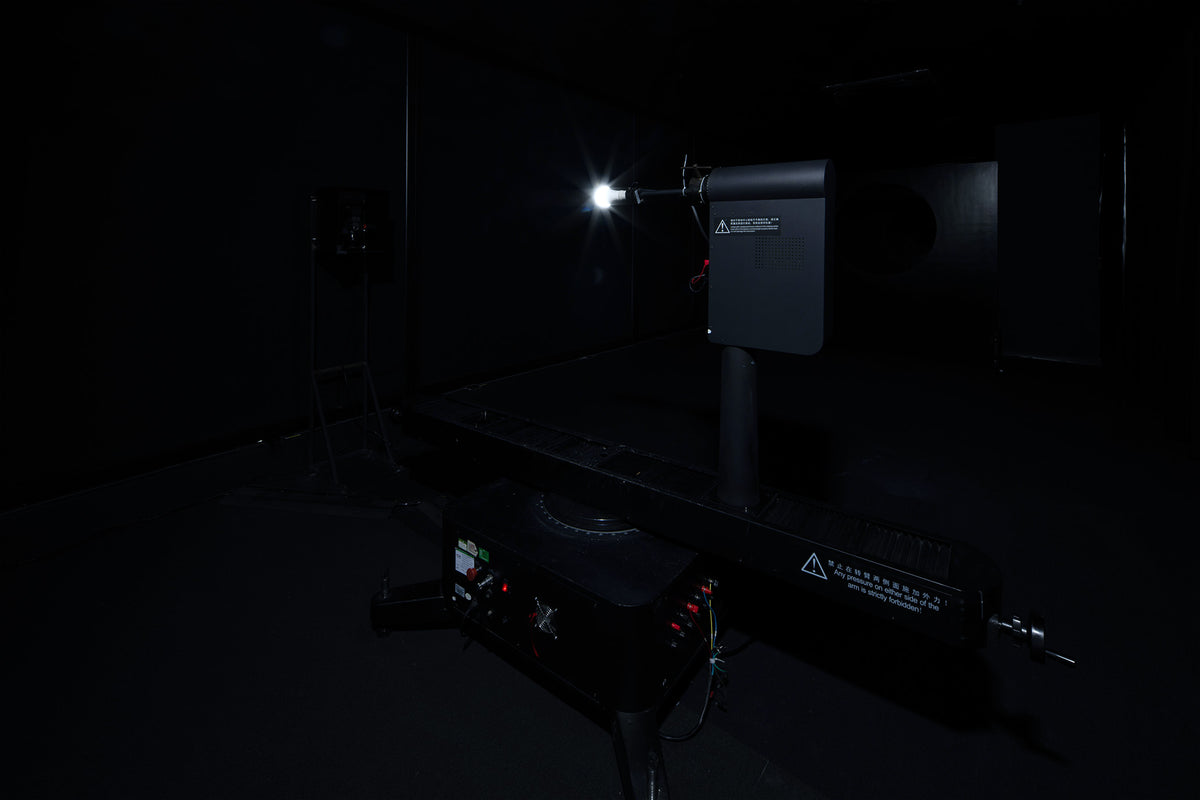

Intensity Distribution Testing

Static Positioning Test: Precisely locates the light intensity center of the luminaire using laser alignment in a darkroom. Dynamic Rotation Test: Rotates the luminaire 360 degrees while collecting real-time intensity data to generate distribution curves.

Photoelectric Performance Test

LED luminaires are powered and tested at the center of an integrating sphere, with key photometric, colorimetric and electrical parameters measured after stabilization.

For Efficiency

Goneo conduct comprehensive battery package testing to evaluate capacity and reliability. Our engineers precisely configure critical parameters—including voltage, current, and temperature—while monitoring the entire process to ensure all results meet regulatory standards and performance requirements, providing customers with safe and reliable product assurance.

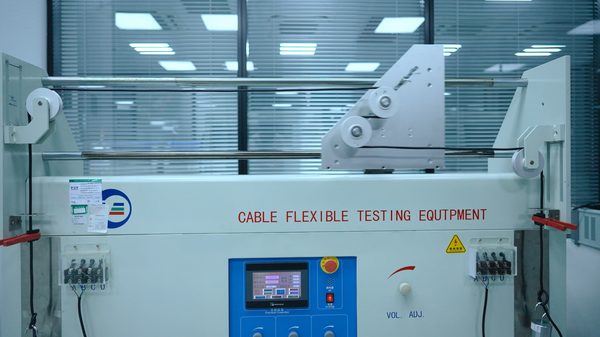

Wire Flex Test

The flexing test is a method to evaluate the fatigue resistance of materials or components under repeated dynamic loads such as bending and stretching. It is widely applied in fields like wires and cables, rubber products, coated fabrics, and more.

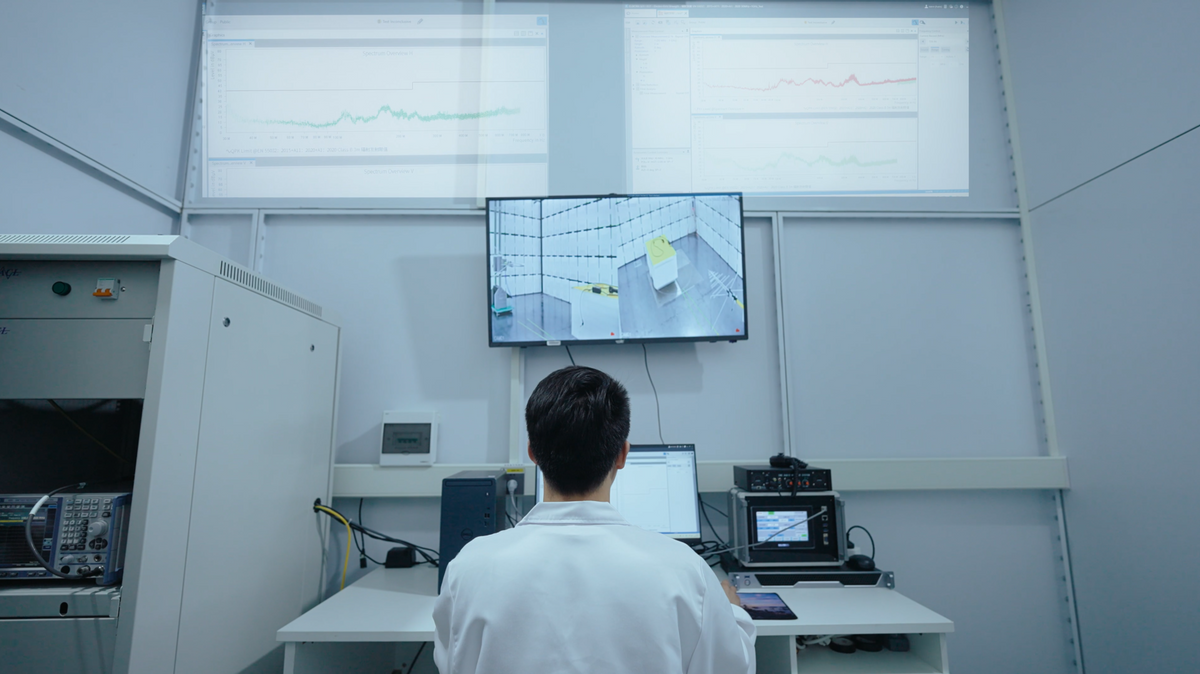

EMI Test

Testing of conducted disturbance and radiated disturbance of electronic and electrical products

1

Sample Setup

Secure sample on turntable aligned with test antenna.

2

Configure Parameters

Set test parameters (frequency range, bandwidth, etc.) and switch antenna polarization (horizontal/vertical).

3

Isolate Environment

Close shielded door (9-layer structure), confirm indicator illumination.

4

Monitor Process

Engineer observes sample and antenna status via monitor, records disturbance power waveforms in real-time.

5

Complete Test

Collect conducted/radiated emission data and generate report.

Needle Flame Test for Flame-Retardant Components

A standardized needle flame generator (0.5 mm nozzle, ≥35 mm length) fueled by high-purity butane (≥95%) is applied to the sample for a specified duration. During and after ignition, observers record ignition behavior, flame spread, dripping, and whether droplets ignite the underlying tissue. The test evaluates fire resistance under fault conditions.

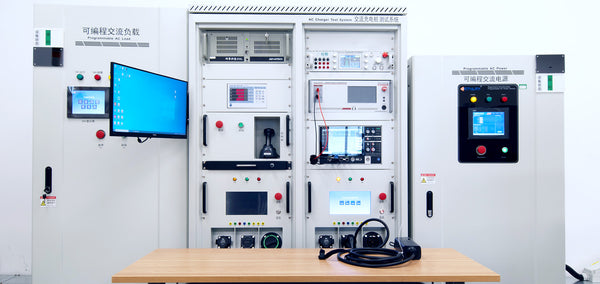

Charging Pile Safety Compliance Test

The three-in-one test system integrates an oscilloscope to capture waveforms in real time, enabling precise analysis of charging pile safety compliance and ensuring electrical safety and protocol conformity.

Performance Test

Dual-gun charging, control guidance, over/under-voltage, residual current, and voltage surge tests.

Aging Test

Performs full-power load testing (e.g., 7KW charger at 220V AC/32A) to evaluate stability under prolonged maximum load conditions.

Endurance Test

Simulates repeated plugging/unplugging cycles via automated aging programs controlled through computer software.

For Compliance

Global certification for all GONEO products
